Valiant high-purity fused quartz sleeves are engineered for demanding applications that require thermal resistance, chemical durability, and optical transparency. Quartz sleeves are designed to protect lamps, sensors, probes, and other components in harsh environments to maintain excellent light transmission and long service life.
Grade 110H-S: High Transmission Quartz Sleeves
High-Purity Material
Manufactured from 99.99%+ SiO₂ fused quartz to ensure ultra-low contamination and superior performance.
Exceptional UV & IR Transmission
Transparent across a broad wavelength range, ideal for UV disinfection systems, IR heaters, and optical sensors.
Thermal Shock Resistance
Withstands rapid temperature changes and continuous use at temperatures <1100°C.
Chemical and Corrosion Resistance
Inert to most acids, bases, and solvents; suitable for industrial and water treatment environments.
Precision Fabrication
Sizes available of varying diameters, thicknesses, and a variety of fabricated ends including fire-polished, sealed, domed, flared.

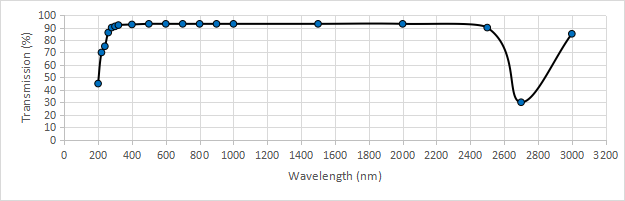

TYPICAL TRANSMISSION CURVE
Wall Thickness: 1 mm
